1
IBM’s Customer Information Control System, CICS
  • Art Hendela, President
  • Hendela System Consultants, Inc.
  • Little Falls, NJ
  • 1-973-890-0324
  • WWW.HENDELA.COM
  • art.hendela@hendela.com
  • Your Web Database Experts


2
What is a Transaction?
  • A transaction has four properties:  It is “Atomic, Consistent, Isolated, & Durable”.
  • Atomic - A unit of work that succeeds or fails.
  • Consistent - System restored to a constant state after completion.
  • Isolated - one transaction does not impact another, even if done at the same time.
  • Durable - A committed transaction is permanent.
3
CICS History
  • 1968 - Package developed by Michigan Bell and IBM on OS/360
  • 1971 - CICS available for DOS & DOSE
  • 1973 - Development moved to Hursley, England
  • 1987 - CICS/VM introduced
  • 1992 - CICS/400 version for AS/400
  • 1996 - CICS Web Interface Product
4
CICS Hardware &
Operating Systems
  • IBM zSeries 900 - z/OS
  • IBM S/390 - OS/390, MVS, VSE
  • IBM AS/400 - OS/400
  • IBM RS/6000 - AIX (Unix)
  • PC Server - Windows NT/2000, OS/2
  • The most popular is the S/390 using OS/390 or MVS
5
CICS Programming Languages
  • Assembler
  • COBOL
  • PL/I
  • Rexx
  • C/C++
  • JAVA
6
CICS Organization
  • CICS Management Services
  • Data Management Services
  • Application Programming Interface
  • Basic Mapping Support
  • Terminal Control Services
7
CICS Service Diagram
8
CICS Program Invocation
9

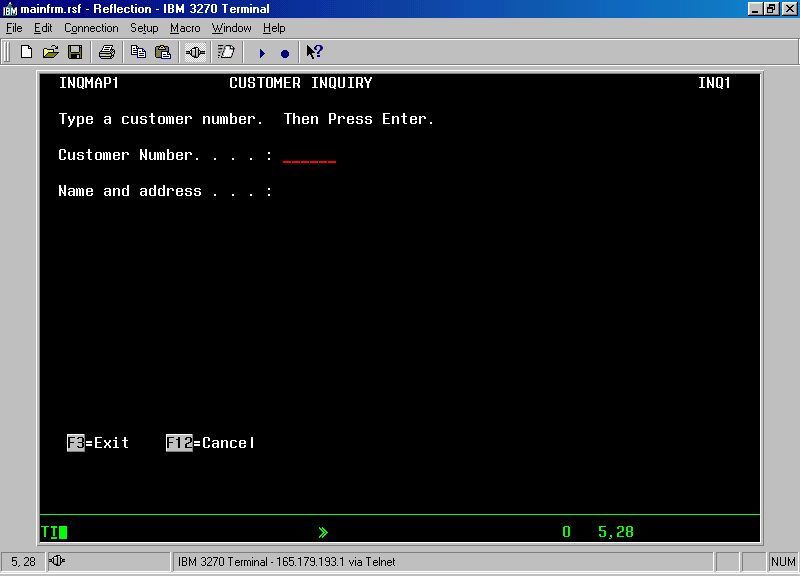

 CICS Example - Screen 1
10
CICS Example - Screen 2
11

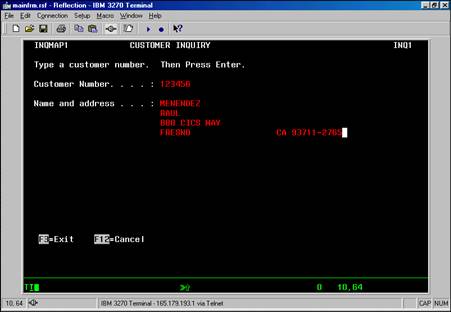

CICS Example - Screen 3
12

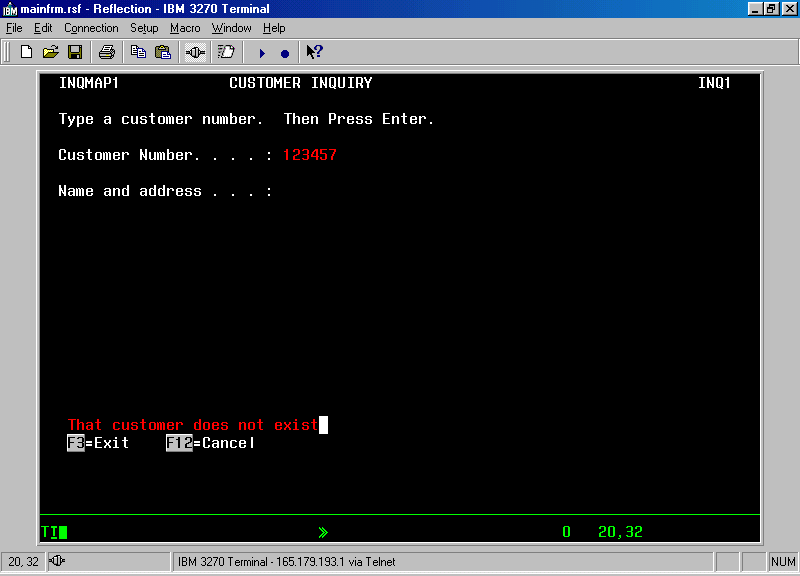

CICS Example - Screen 4
13
Summary
  • CICS grew from the need to handle interactive transactions
  • CICS operates on many different IBM compatible hardware platforms using a variety of languages.
  • CICS uses Service programs to control execution and use of system resources.
  • A CICS user sends a TRANS-ID to begin the program execution.
14
Glossary [Ankrum]
  • ACID - Atomic, Consistent, Isolated, Durable: transaction properties.
  • BMS - Basic Mapping Support: For definition and access to formatted screens.
  • CICS - Customer Information Control System.
  • CMS - Conversational Monitor System: An interactive subsystem for VM.
  • DB2 - Database 2, IBM’s relational database manager.
  • DL/I - Data Language / I: General purpose database control language.
  • DOS - Disk Operating System: An early IBM operating system for small mainframes or the original operating system for IBM compatible PCs.
  • IMS - Information Management System: IBM Product with an OLTP and hierarchical database manager.
  • MVS - Multiple Virtual Storage: Top of the line IBM operating system before OS/390.
  • OLTP - On-line Transaction Processing.
  • OS/390 - Open System 390:  latest operating system for IBM System/390’s.
  • SNA - System Network Architecture: IBM’s proprietary network protocol.
  • SQL - Structured Query Language: interface to access relational databases.
  • TCP/IP - Transmission Control Protocol/Internet Protocol.
  • VM - Virtual Machine: IBM Mainframe operating system to allow multiple operating systems to run on one machine simultaneously.
  • VSAM - Virtual Storage Access Method.
  • VTAM - Virtual Telecommunications Access Method.
  • Additioanl definitions may be found at: http://www.transarc.ibm.com/Library/documentation/websphere/WAS-EE/en_US/html/glossary/cicsglos.htm


15
References
  • Antrim, T. Scott, “The Evolution of CICS 30 Years Old and Still Modern.  www.cobolreport.com/columnists/tscott/part1.html - part4.html, May, 2001.
  • Comaford, Christine, “Managing Transactions is a Serious Business”. PC Week, March 20, 1995 12(11), pg 19(1).
  • Donofrio, Phyllis. “CICS-A Programmer’s Reference”, McGraw-Hill, 1991.
  • Horswill, John & Hursley CICS Development Team, “Designing & Programming CICS Applications”, O’Reilly, 2000.
  • Hudders, Eugene S. “CICS-A guide to Internal Structure”, John Wiley & Sons, 1994.
  • IBM, “CICS”, http://www-4.ibm.com/software/ts/cics/, 2001.
  • Lowe, Doug, “The CICS Programmer’s Desk Reference”, Mike Murach & Associates, 2nd Ed, 1992.
  • Menendez, Raul & Doug Lowe. “Murach’s CICS for the COBOL Programmer”, Mike Murach & Associates, 2001.
  • Nusphere Tech Notes, “ACID Transactions” www.nusphere.com/products/library/acid_transactions.htm,
